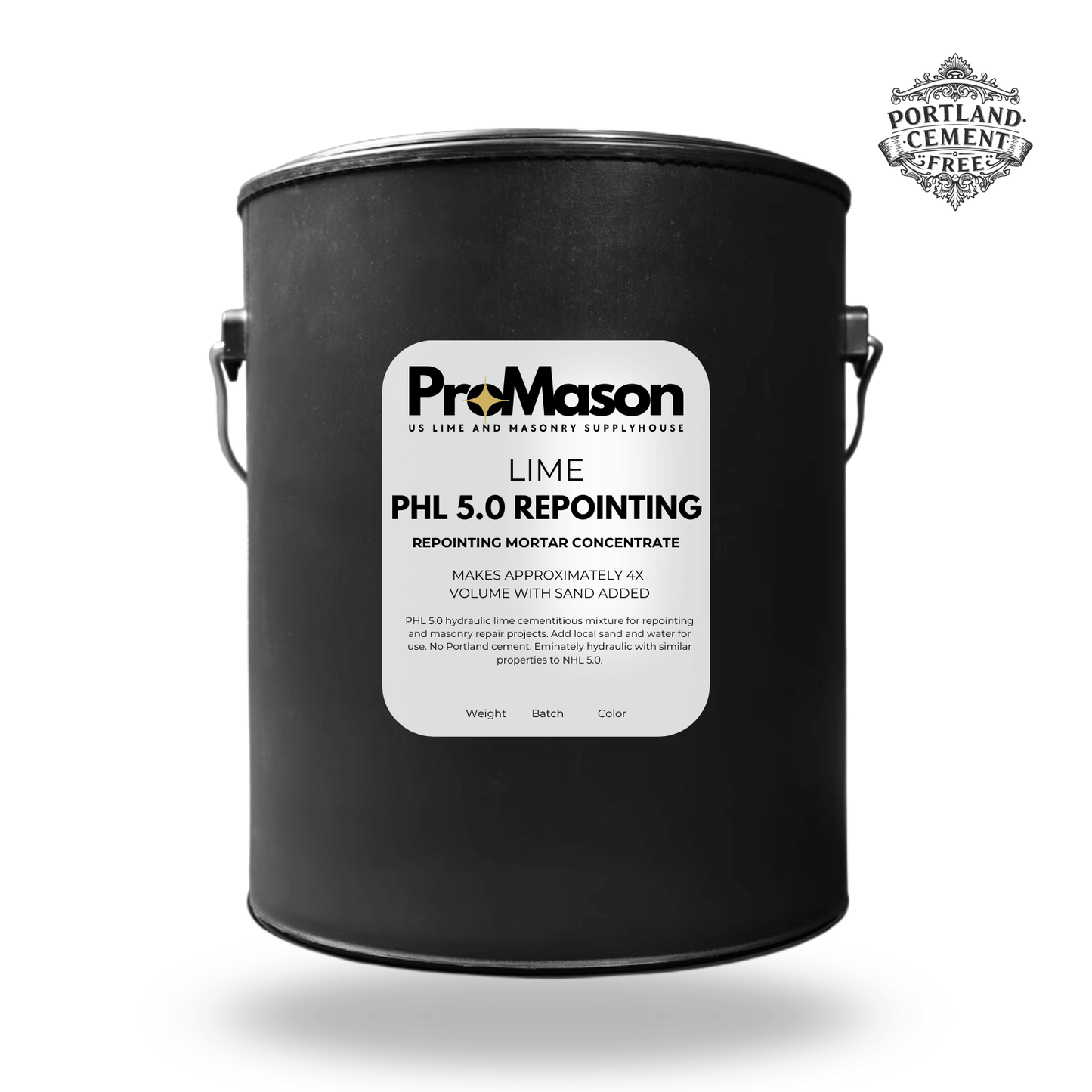

Lime Mortar Concentrate - PHL 5.0

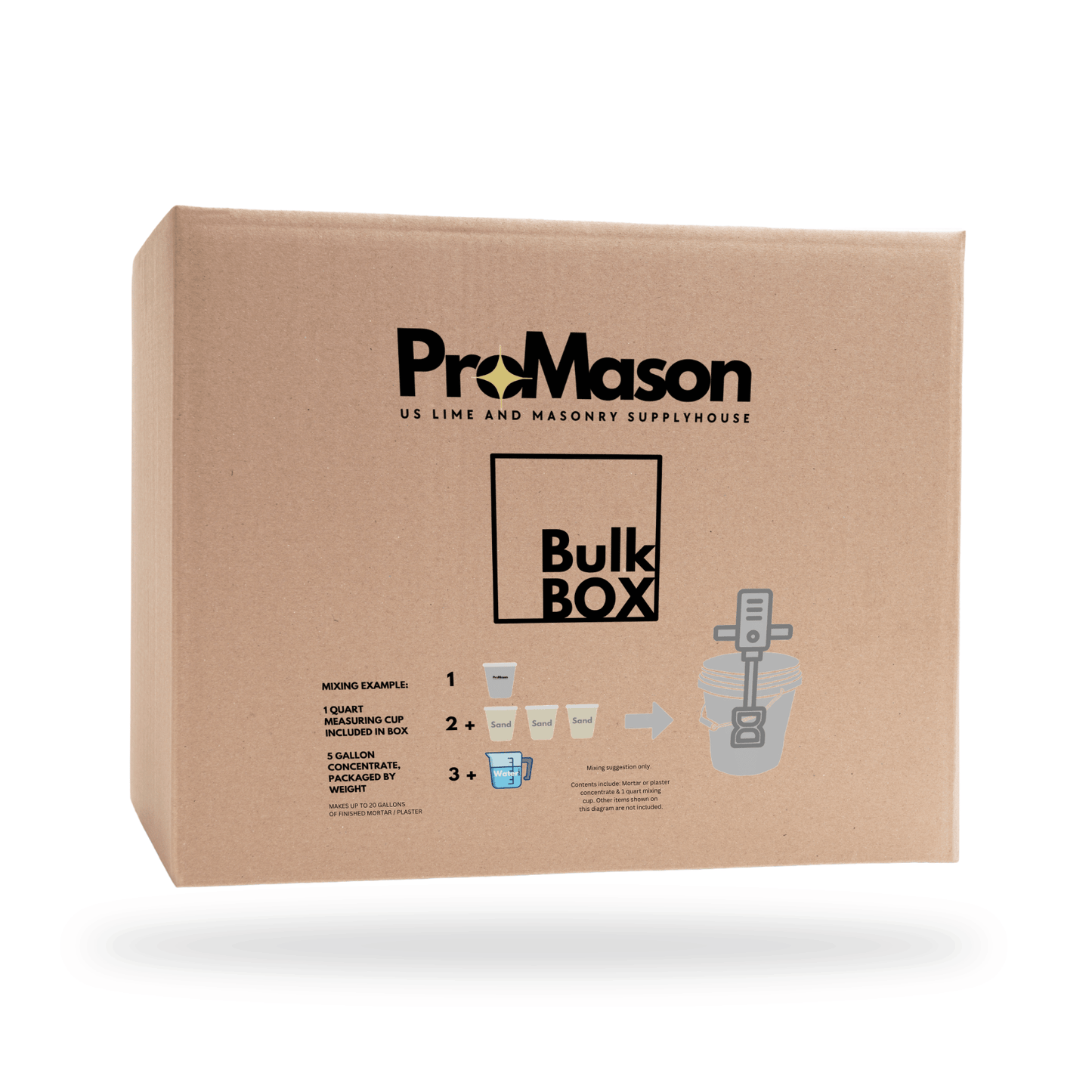

Lime Mortar Concentrate - PHL 5.05-gallon bulk box = five 1-gallon cans' worth of concentrate.
Not sure of the color? Pick the Quart – Sample & Small Project Size to test it at home before the full order.
Shipping & returns
- Ships from Olathe, Kansas by UPS, usually within 1–2 business days.
- Rates are quoted live at checkout for your ZIP code.
- Items with a pallet option ship free on the pallet size. For large orders of other items, contact us.
- We deliver to UPS addresses in the continental US.
- Returns or a damaged order? See our Return & Refund Policy.
Part of The Pro Mason System. Clean, repair, protect: see how it works · project guides · FAQ
Couldn't load pickup availability
Repointing Coverage
Repointing Coverage

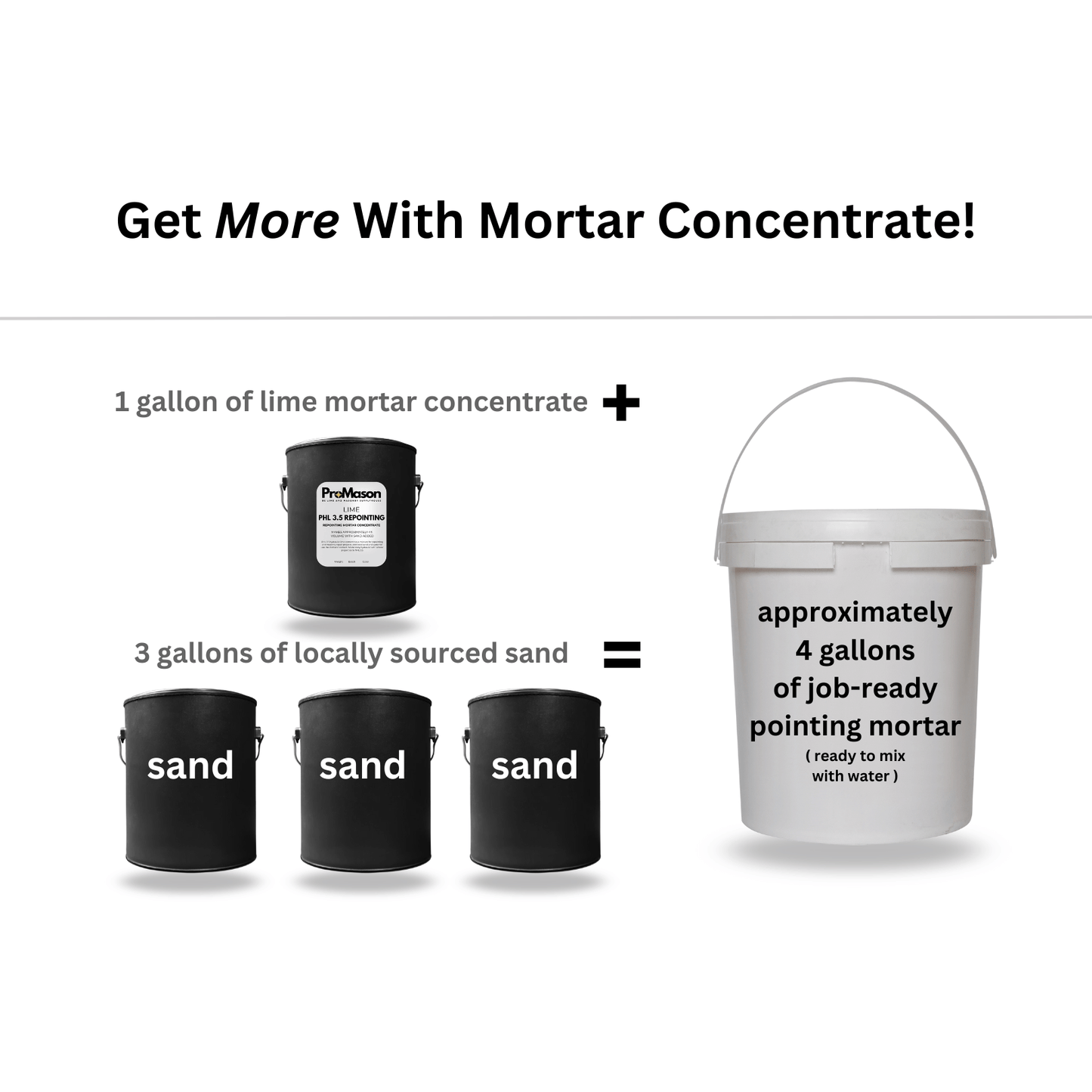

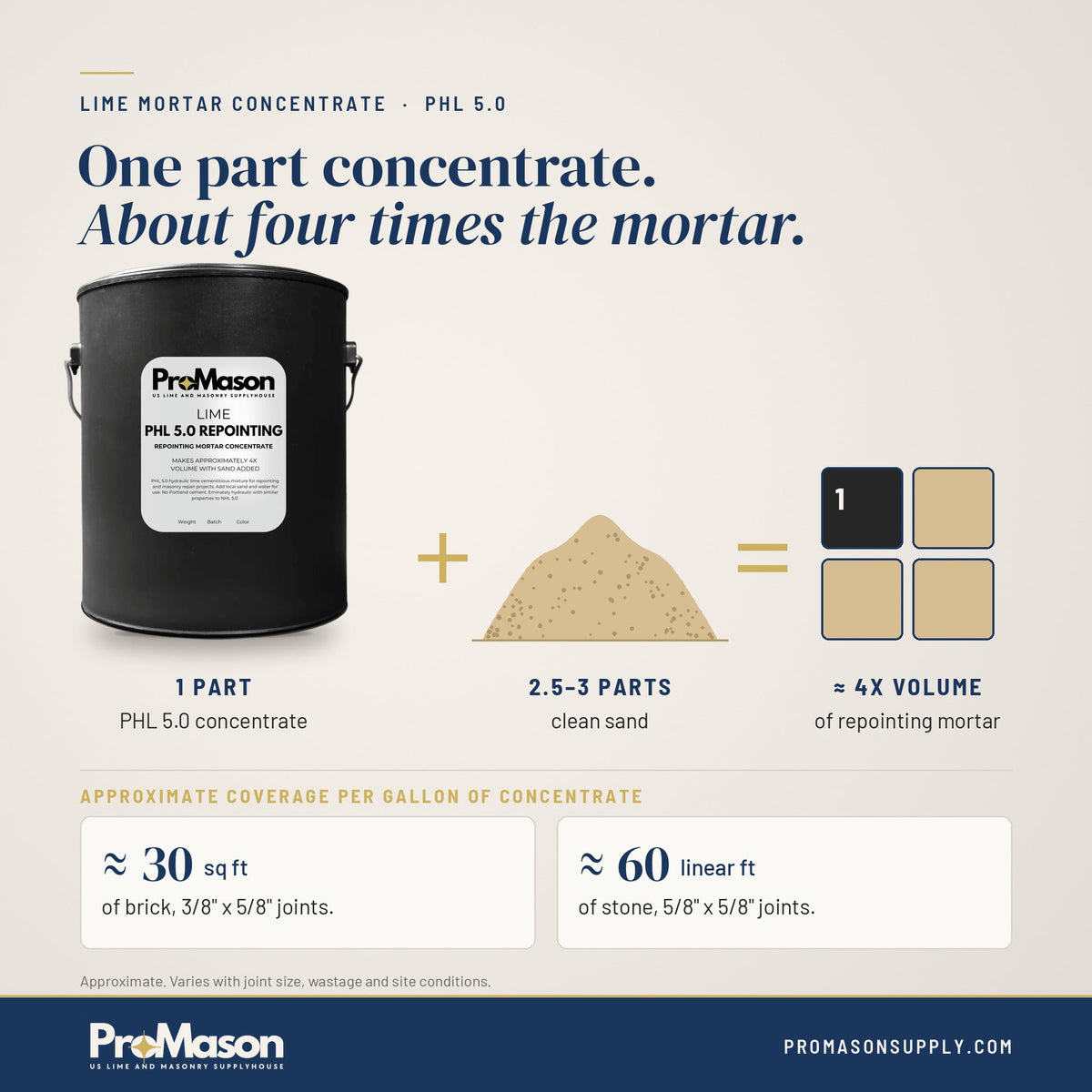

Coverage depends on your wall: brick size, stone pattern, joint width and depth all change how much mortar you need. Coverage is based on concentrate. 1 gallon of concentrate mixed with sand makes about 3.5-4 gallons of mortar. Use the Mortar Estimator below the video on this page to estimate what to order.
Not sure which to pick?
Not sure which to pick?
Tell us about your project and the year your home was built, and we'll suggest a good place to start. Ask us here.
Pick PHL 5.0 if you're repointing or resetting old brick or stone that takes hard weather: chimneys, parapets or steps.

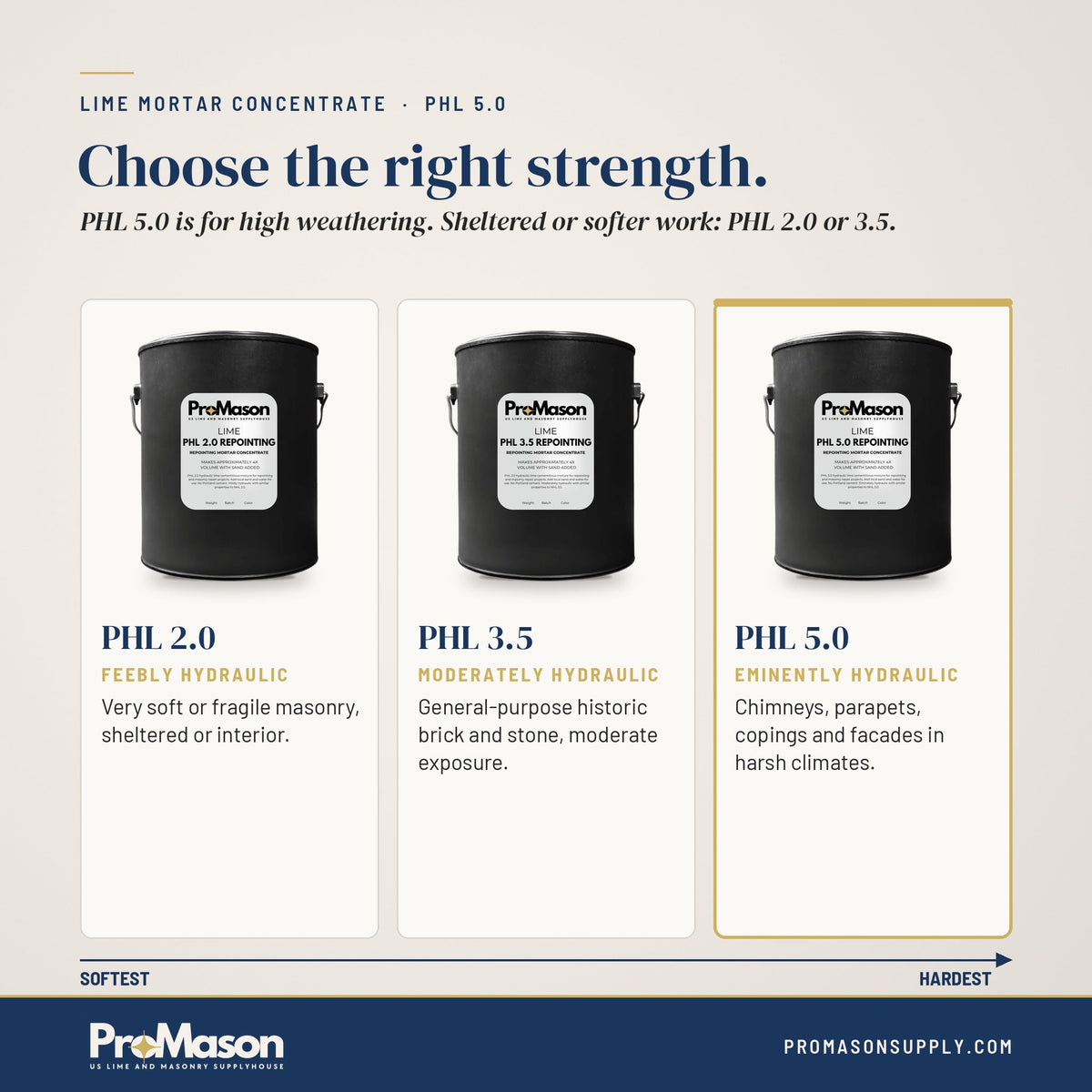

| Grade | Best for |
|---|---|
| PHL 2.0 | Soft or fragile brick in sheltered spots: porches, protected walls |
| PHL 3.5 | Most lime-laid walls built before about 1920 |
| PHL 5.0 (this one) | Exposed spots: chimneys, parapets, steps and resetting |
Existing mortar hard and cement-based? Use Type N instead.

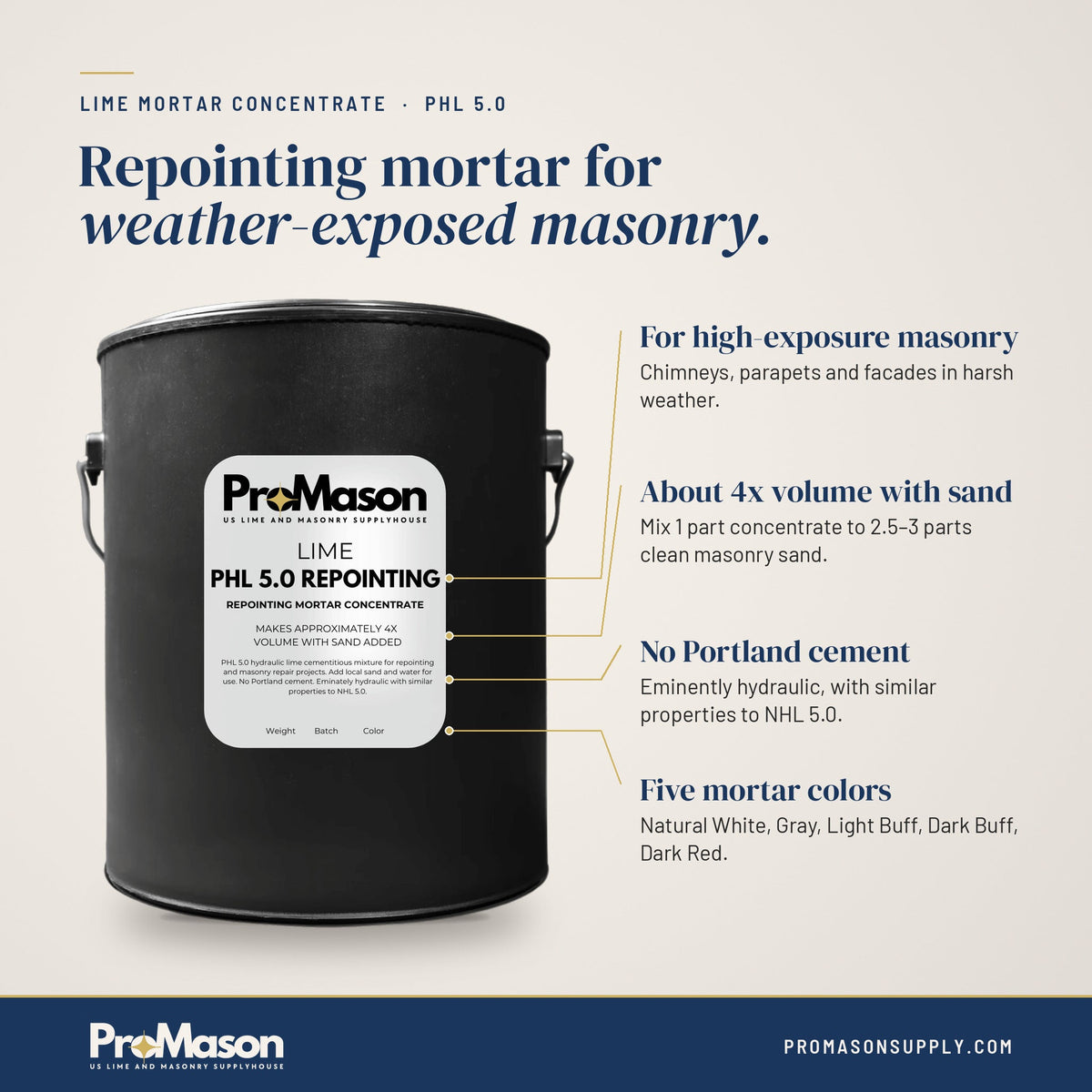

- Firmest PHL grade - for the most exposed parts of an old house.
- Steps and resetting - repoint or reset brick and stone steps laid in lime mortar.
- No Portland cement - keeps old masonry breathing.

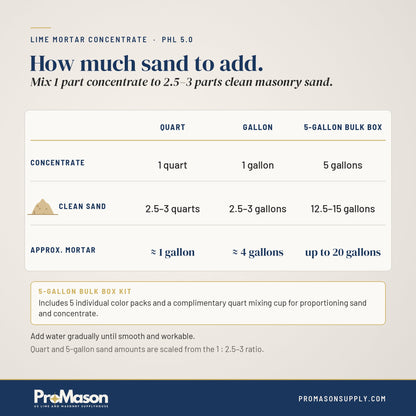

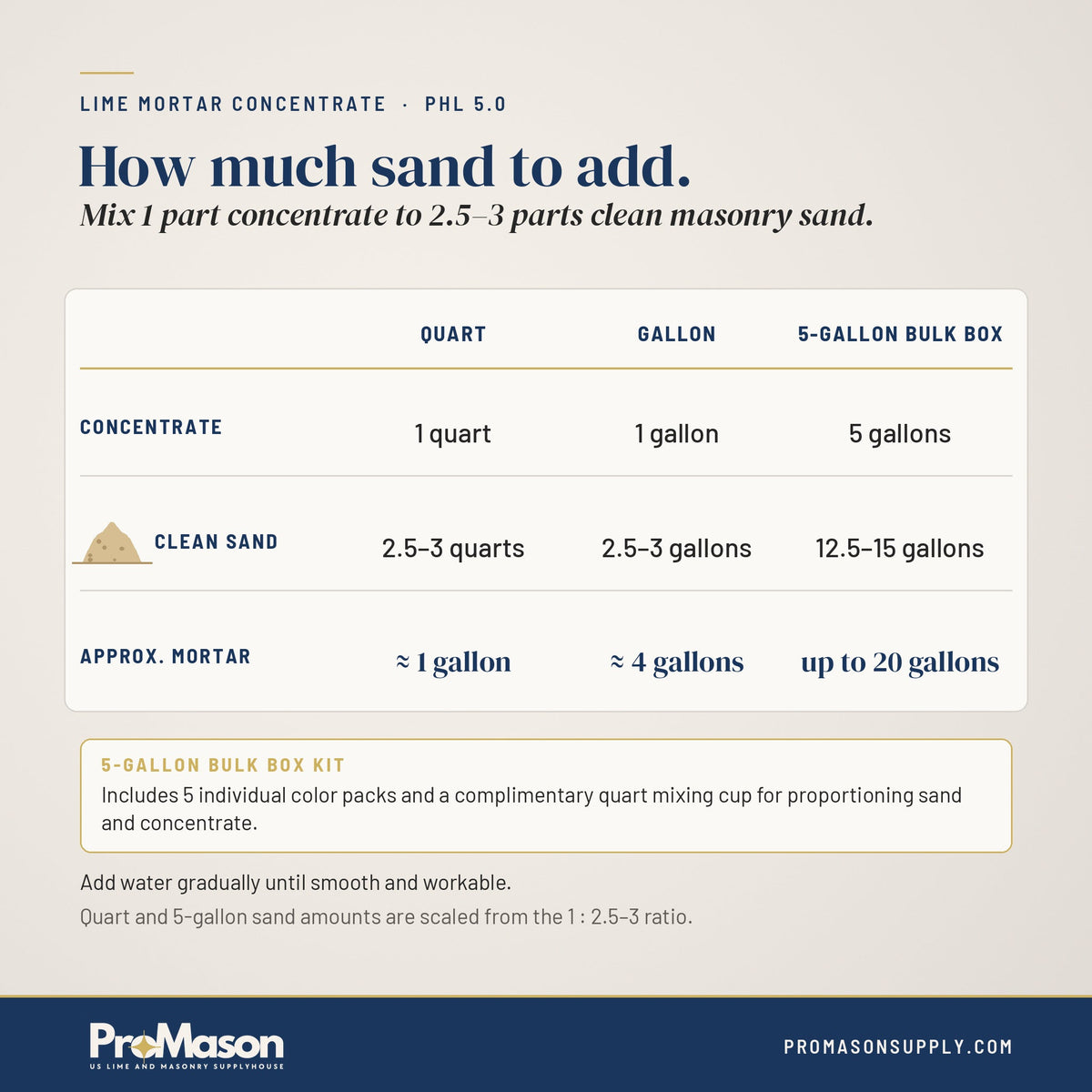

- Mix with your sand - 1 part concentrate to 2.5 to 3 parts clean masonry sand.

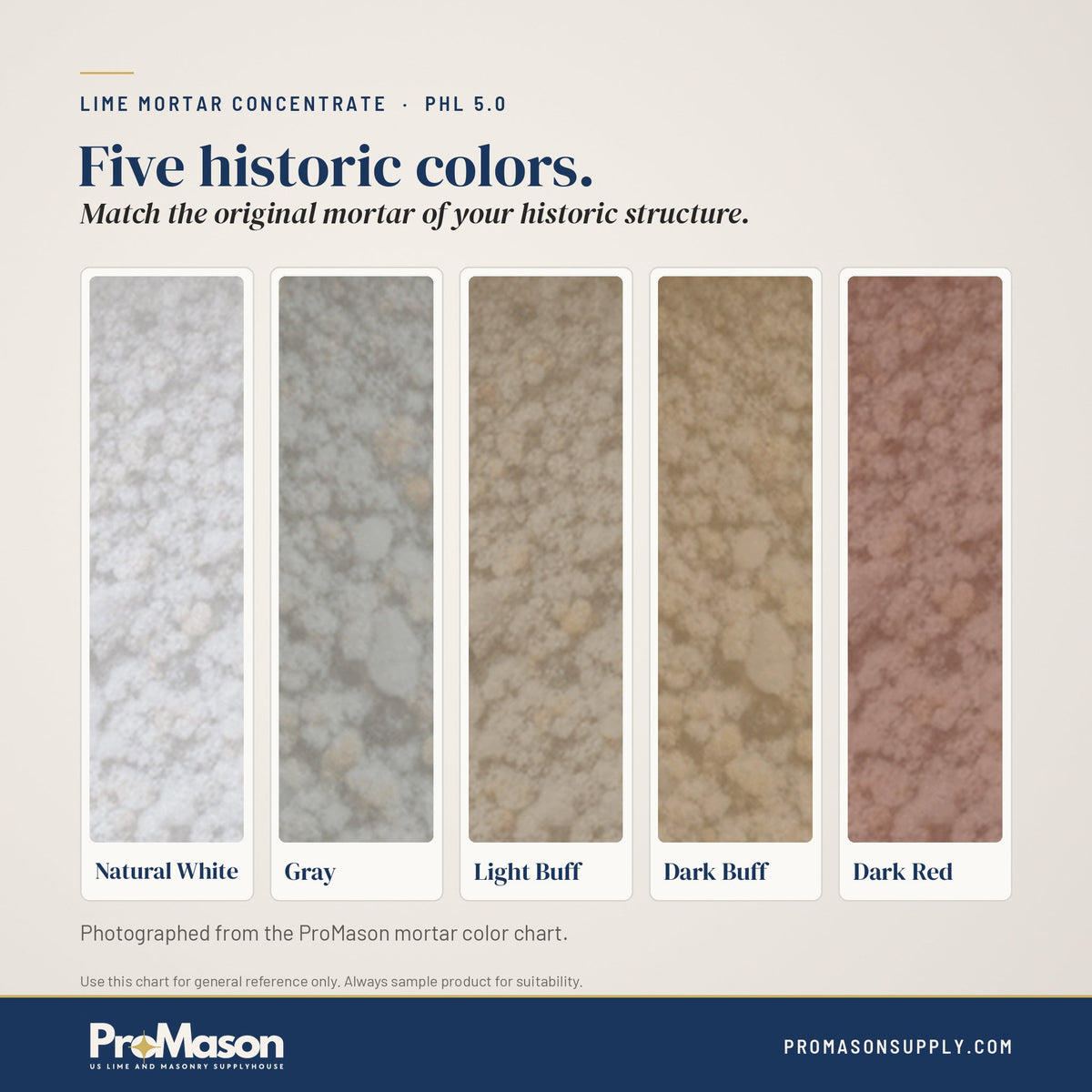

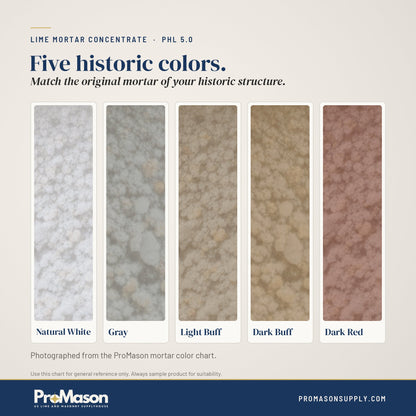

- Color pack included - Natural White, Gray, Light Buff, Dark Buff or Dark Red.
How the job goes
- 1. Match. Check the old mortar's color and sand, then mix a small test batch.
- 2. Rake. Remove old mortar to about twice the joint's width, down to a sound base.
- 3. Repoint and cure. Pack and tool the joints, then keep them damp under burlap for about a week.
Sizes
- Quart (sample and small projects)
- Gallon (standard, makes about 3.5 to 4 gallons of mortar)
- 5 Gallon box (makes up to 20 gallons of mortar)
Safety: lime is caustic. Wear gloves and eye protection.
More about PHL 5.0

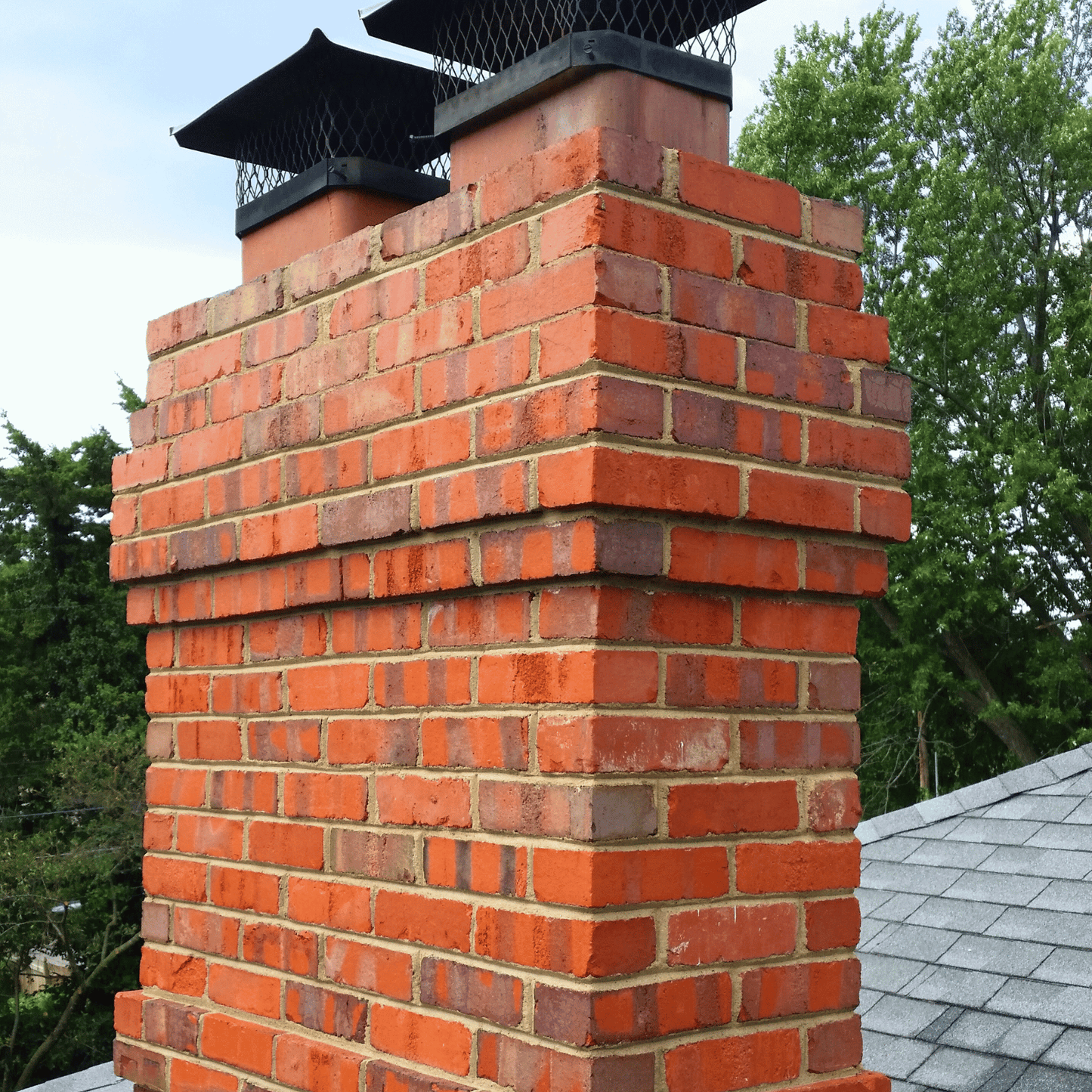

Chimneys, parapets and front steps take more weather and more wear than any other part of an old house. PHL 5.0 is the firmest grade in our PHL lineup, chosen for those exposed spots, and it is still a lime mortar with no Portland cement, so the masonry keeps breathing.
Mix one part concentrate with two and a half to three parts clean masonry sand, adding water a little at a time until it feels smooth and workable. Stir in the color pack gradually and point a few test joints somewhere out of sight; once they are fully dry, compare them with the old work and adjust. We recommend working when it's above 40°F, and protecting fresh work from freezing while it cures. Lime cures slowly and likes moisture, so keep the joints damp under burlap for about a week and shade them from direct sun and wind. On chimneys and parapets, which catch the most sun and wind, keeping the work covered and damp matters most.

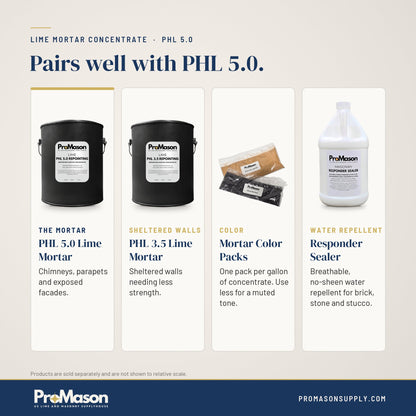

PHL 5.0 is also our grade for resetting loose brick and stone on steps laid in lime mortar, as well as setting replacement brick or stone into pure lime masonry and laying new non-structural mass-masonry walls. Once the mortar has had its initial cure, Mortar Wash gently lifts any haze or smears from the face of the brick or stone, and helps the new joints blend with the old. Test it in a small, out-of-sight spot first.
If the existing step or chimney mortar is already hard and cement-based, Type N is the better match. For sheltered walls, PHL 3.5 or PHL 2.0 is the gentler choice. Finished well, the chimney or steps blend back into the house and keep breathing through the seasons.

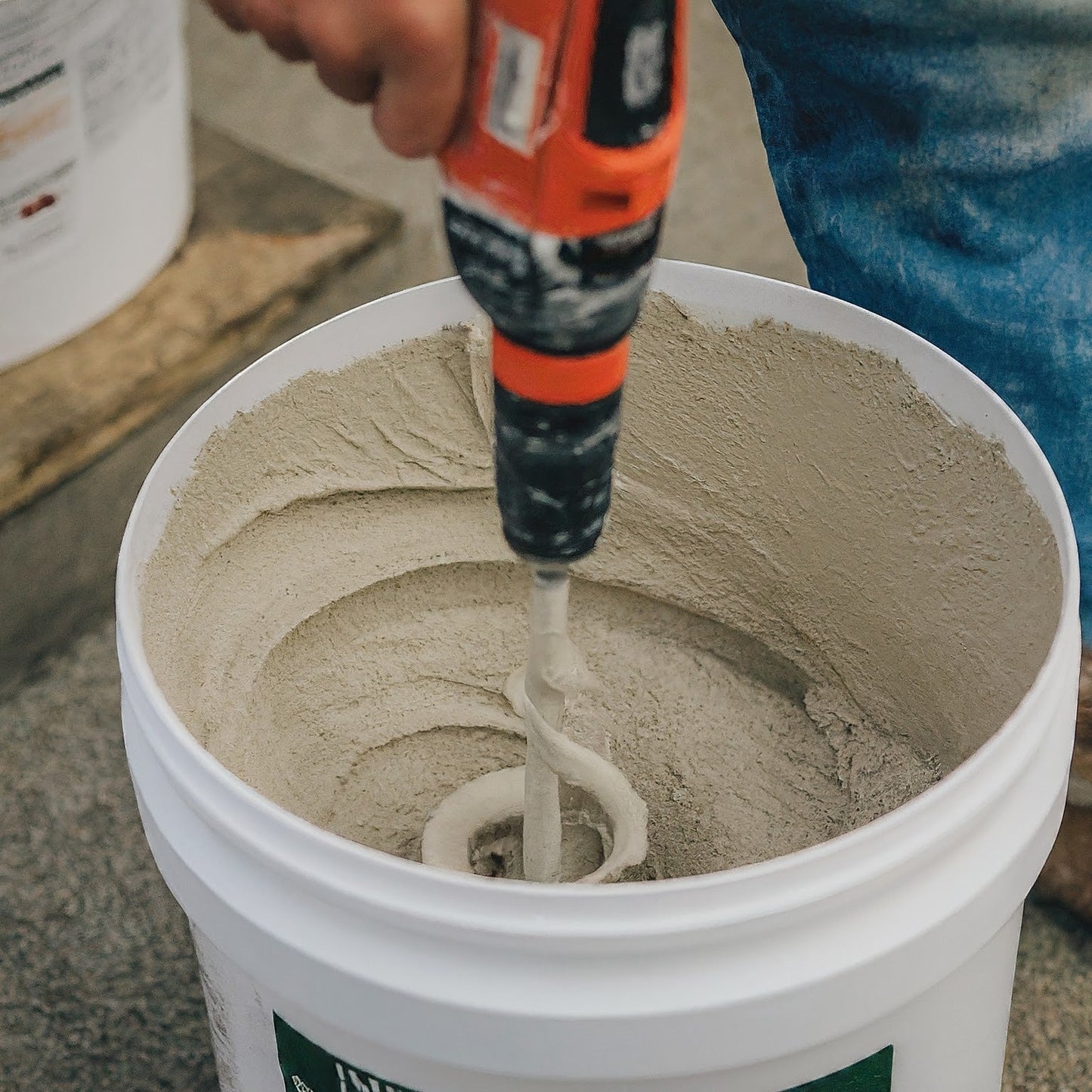

Watch: mixing a quart batch at home
Estimating tool
Mortar Estimator
Answer a few quick questions and we will suggest a mortar and help you estimate how much to order.
Mortar Estimator
Mortar color visualizer

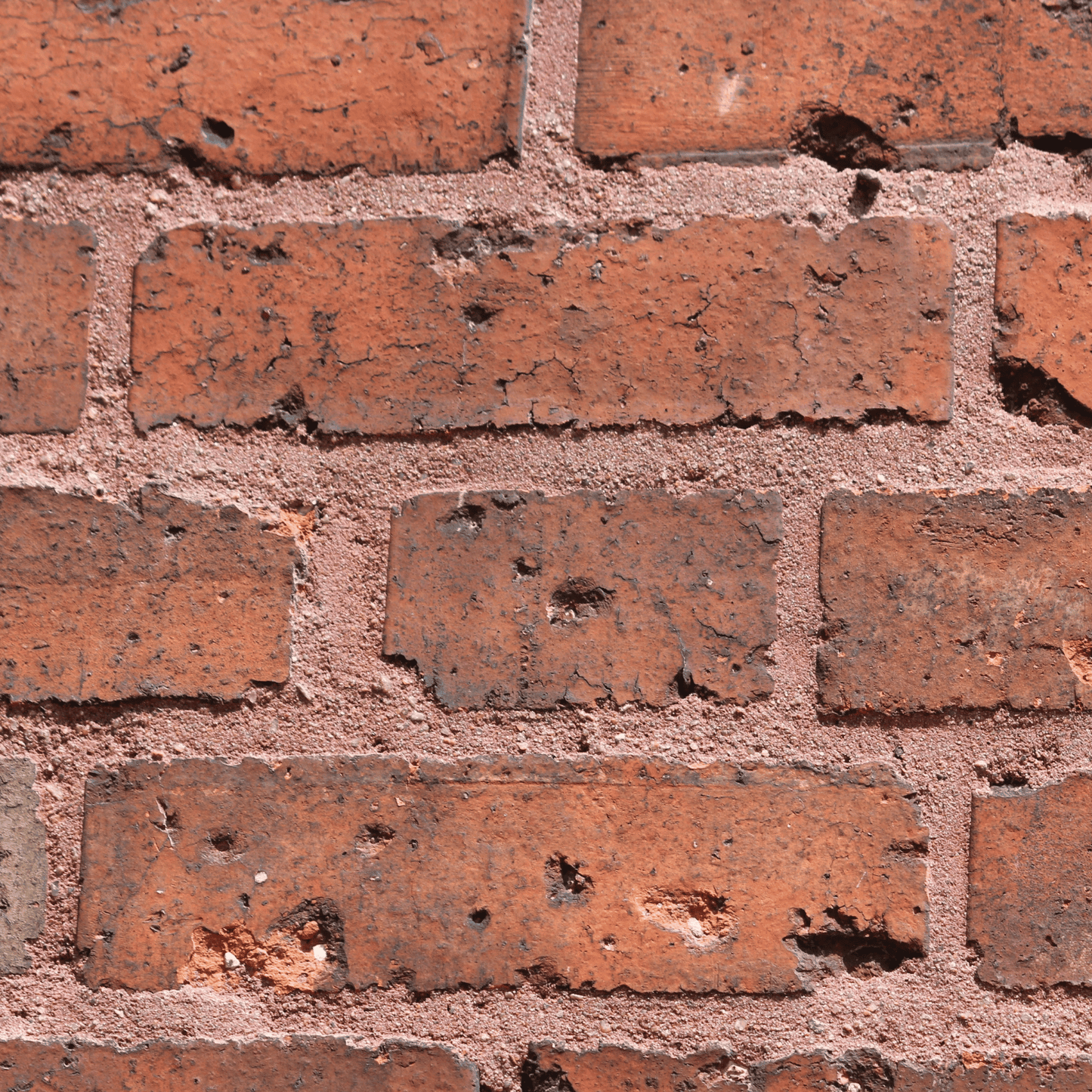

See each shade on a wall
Tap a shade to see it in brick or stone joints. Tapping a shade also picks that color above.
For illustration only. Order a color sample to see the actual color.
Adjust the color to suit your project. Color packs come packaged separately from the mortar, so you can use less for a softer, less saturated shade, or add an extra color pack (sold separately) for a richer one.
